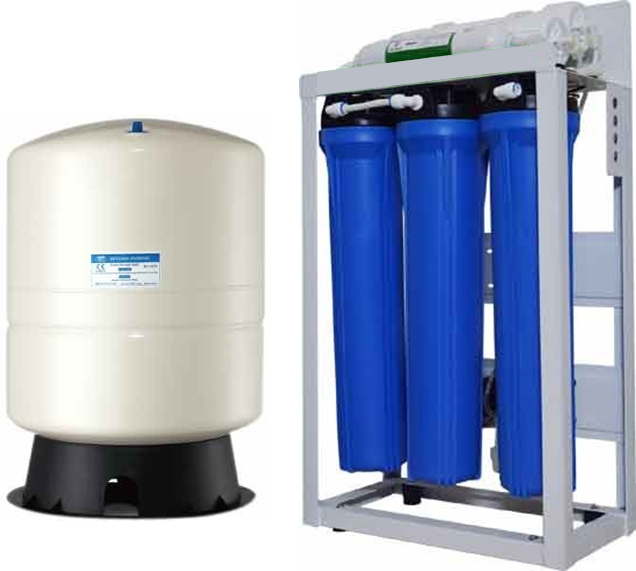

400 GPD RO Water Filter

FIRST STAGE

Sediment Filter : 1 Pc
MOC of Filter : 100% Polypropylene Fiber
Length of Filter : 20 Inch
Diameter of Filter : 2.5 Inch
Size of Filter Housing : 20 Inch
Color of Housing : Blue

This Sediment filter cartridge is manufactured from pure 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surfaces. It is effective in removing dust, mud, rust and sand particles

SECOND STAGE

Granular Activated Carbon Filter : 1 Pc
MOC of Filter : 100% Coconut Shell, (Granular Type)
Length of Filter : 20 Inch
Diameter of Filter : 2.5 Inch
Brand name of Filter : Heron
Size of Filter Housing : 20 Inch
Color of Housing : Blue

This granular activated carbon filter is composed of high-performance activated carbon that effectively reduces unwanted tastes, odor, organic contaminants, chlorine, pesticides and chemicals that contributed to taste and odor. It is designed to allow maximum contact between the water and carbon, ensuring maximum adsorption.

THIRD STAGE

Activated Block Carbon Filter : 1 Pc
MOC of Filter : 100% Coconut Shell, (Block Type)
Length of Filter : 20 Inch
Diameter of Filter : 2.5 Inch
Brand name of Filter : Heron
Size of Filter Housing : 20 Inch
Color of Housing : Blue

This block carbon filter is composed of high-performance Coconut Shell carbon using a patented process and made entirely from FDA-compliant materials that highly effective at reducing 17 hazardous metals: such as lead, radon, mercury, insecticides, odor and chlorine: taste & odor, from potable drinking water. The unique structure of the carbon block enables it to reduce Giardia, Cryptosporidium, amoeba, and Toxoplasma cysts and fine sediment particles down to 0.5 microns. It is ideal choice for a wide range of residential, food service, commercial and industrial applications.

FOURTH STAGE

Reverse Osmosis (RO) Membrane : 1 Pc
Membrane Type : Thin-Film Composite
Membrane Materials : Polyamide (PA)
Element Configuration : Spiral-Wound

Reverse Osmosis utilizes the unique properties of a semi-permeable membrane to allow fluid to pass while restricting the flow of dissolved ionic material. With pressure applied to impure water on the side of such membrane materials, pure water will pass through, leaving most of the impurities behind. The rejection of the dissolved ionic material is a function of both molecular weight and ionic charge. For example, we can expect a nominal 90% rejection of sodium chloride, which means that the product water passing through the membrane will have a concentration of salt approximately one-tenth that of the feed water. The rejection of calcium carbonate (hardness) will be near 95%, while most metallic salts will be rejected at a rate of approximately 98% to 99%.

The rejection of non-ionic or organic material is primarily by mechanical filtration. Most substances with a molecular weight of over 100 will be completely rejected by an intact reverse osmosis membrane. Low molecular weight organics, such as formaldehyde or phenol, can pass freely through an R.O. membrane, as can most dissolved gasses. Oil, suspended solids and particulate matter are mechanically filtered, as are viruses, bacteria, pyrogen, and larger organic molecules.

To carry the rejected material away from the membrane surface, the feed side of the R.O. membrane is continually flushed with an excess flow, usually two to five times the product flow. This avoids clogging of the membrane surface and reduces the tendency toward scale formation.

Contaminants : Average Percent Reduction
Arsenic : 99.99
Barium : 98.90
Cadmium : 99.60
Chromium (Hexavalent) : 99.99
Chromium (Trivalent) : 97.00
Copper : 99.0
Cysts : 100
Turbidity : 98.50
Fluoride : 97.9
Lead : 99.99
Perchlorate : 96.5
Total Hardness : 100
Selenium : 92
TDS : 97

FIFTH STAGE

Post Carbon Filter : 1 Pc
Filter Materials : Activated Carbon
Maximum Pressure : 125 PSI
Type of Filter : Inline
Maximum Temperature : 100. F

This granular activated carbon filter is composed of high-performance activated carbon that effectively reduces unwanted tastes, odor, organic contaminants, chlorine, pesticides and chemicals that contributed to taste and odor. It is designed to allow maximum contact between the water and carbon, ensuring maximum adsorption. We are using NSF approved post carbon to guarantee the taste of water.

BOOSTER PUMP

Quantity : 1 Pc
Maximum Pressure : 130 PSI
Maximum Temperature : 100. F
Volt : 36 VDC, 3A

PURE WATER RESERVE TANK

Quantity : 1 Pc
MOC : Steel Powder Coated
Tank Capacity : 11 / 20G
Water Reserve Capacity : Tank
